Crosser Node behind proxy

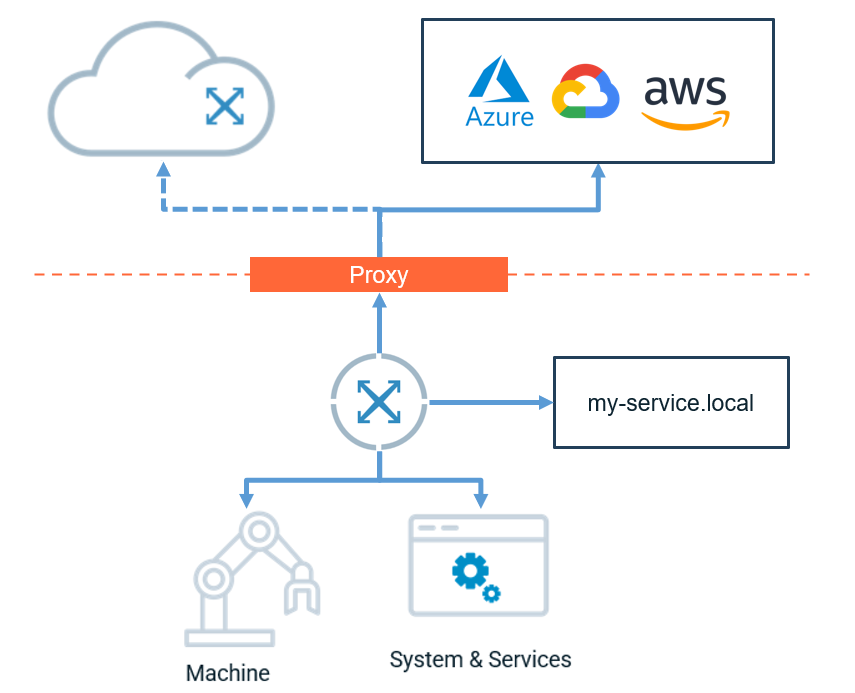

This article shows how to run the Crosser Node behind an HTTP/HTTPS proxy while still reaching local/on-prem systems without the proxy.

  • The Crosser Node is a .NET application.

  • On Windows, it reads the http_proxy, https_proxy, and no_proxy system environment variables.

  • On Linux/Docker, it follows the standard http_proxy, https_proxy and no_proxy.

  • If your proxy performs TLS inspection (MITM) or serves via a private CA, the Node must trust the proxy’s root/intermediate certificates.

Docker

Set proxy variables on the container and use NO_PROXY to list hosts that must bypass the proxy (local databases, brokers, internal APIs, etc.).
To trust a corporate proxy CA, either:

  • mount a trusted CA bundle from the host into the container, or

  • bake the CA into a custom image
services:
  edgeNode:
    image: registry.crosser.cloud/node/edgenode:latest
    container_name: crosser-edgeNode
    restart: always
    environment:
      # --- Crosser credentials (required) ---
      - SecurityConfiguration__Credentials__NodeId=ENTER-YOUR-NODEID-HERE
      - SecurityConfiguration__Credentials__AccessKey=ENTER-YOUR-ACCESS-KEY-HERE

      # --- Proxy settings (OPTIONAL) ---
      # Use http://user:pass@proxy.example.com:3128 if authentication is required.
      - HTTP_PROXY=http://proxy.example.com:3128
      - HTTPS_PROXY=http://proxy.example.com:3128
      # Duplicate in lowercase for tools/libraries that only read one variant.
      - http_proxy=http://proxy.example.com:3128
      - https_proxy=http://proxy.example.com:3128

      # Hosts that should BYPASS the proxy (comma-separated):
      # include localhost, container service names, Docker host alias, and intranet domains.
      - NO_PROXY=localhost,127.0.0.1,::1,host.docker.internal,edgeNode,*.local,db,influxdb,mosquitto,my-internal-api.corp.local
      - no_proxy=localhost,127.0.0.1,::1,host.docker.internal,edgeNode,*.local,db,influxdb,mosquitto,my-internal-api.corp.local

    ports:
      - 9090:9090
      - 9191:9191
      - 1883:1883

    volumes:
      - "./data:/application/data"

      # Map the Ubuntu host's trusted CA bundle into the container (READ-ONLY).
      # Ensure your corporate/proxy root CA is installed on the host (see notes below).
      - "/etc/ssl/certs/ca-certificates.crt:/etc/ssl/certs/ca-certificates.crt:ro"

      # Alternative: map the whole directory if preferred (comment the single-file line above)
      # - "/etc/ssl/certs:/etc/ssl/certs:ro"

      # Alpine-based images often use /etc/ssl/cert.pem. If needed, add:
      # - "/etc/ssl/certs/ca-certificates.crt:/etc/ssl/cert.pem:ro"

    logging:
      driver: json-file
      options:
        max-size: "50m"
        max-file: "2"

Notes

  • Add your proxy CA to Ubuntu (host): place proxy-root.crt in /usr/local/share/ca-certificates/ and run sudo update-ca-certificates. This updates /etc/ssl/certs/ca-certificates.crt, which the container mounts.

  • Local services in Compose: Add each service name you connect to (e.g., db, mosquitto, influxdb) to NO_PROXY.

  • Docker host from Linux containers: if you call services on the Docker host, include host.docker.internal (on Linux you may need to add extra_hosts: - "host.docker.internal:host-gateway" and Docker 20.10+).

Windows

The Crosser Node (being .NET) reads Windows system environment variables: http_proxy, https_proxy, and no_proxy. Use no_proxy to bypass the proxy for local/intranet hosts.

1. Set system environment variables (GUI)

  • Open System Properties → Advanced → Environment Variables…

  • Under System variables, add or edit:

    • http_proxy → http://proxy.example.com:3128

    • https_proxy → http://proxy.example.com:3128

    • no_proxy → localhost,127.0.0.1,*.local,host.docker.internal,db,influxdb,mosquitto,my-internal-api.corp.local

  • Restart the Crosser Node service (or reboot) so it picks up the changes.

2. Or set via PowerShell (as Administrator)

Powershell:

[System.Environment]::SetEnvironmentVariable('http_proxy',  'http://proxy.example.com:3128', 'Machine')
[System.Environment]::SetEnvironmentVariable('https_proxy', 'http://proxy.example.com:3128', 'Machine')
[System.Environment]::SetEnvironmentVariable('no_proxy',    'localhost,127.0.0.1,*.local,host.docker.internal,db,influxdb,mosquitto,my-internal-api.corp.local', 'Machine')
# Restart the Crosser Node Windows service afterwards.

3. Trust the proxy certificate

If your proxy uses a private/root CA, import it so the Node trusts outbound TLS through the proxy.

  • GUI (MMC):

    1. mmc.exe → File → Add/Remove Snap-in… → Certificates → Computer account → Local computer.

    2. Under Trusted Root Certification Authorities → Certificates, Import… your proxy root CA (.cer/.crt).

    3. (If applicable) import intermediates under Intermediate Certification Authorities.

Powershell:

Import-Certificate -FilePath "C:\certs\proxy-root.cer" -CertStoreLocation "Cert:\LocalMachine\Root"


Notes:

  • Make sure the variables are set at the Machine scope if the Node runs as a Windows Service (e.g., LocalSystem). Then restart the service.
