Updated Key/Value Store Modules

In the previous versions of the Key/Value Store modules you could set/get and delete complex objects for a specific key in a Key/Value Store. What was not possible is to set/get or delete a specific part of such an object.

We have updated the Key/Value modules to allow users to access a specific property with a ‘path’ and perform specific actions such as set/get and delete only a specific property for a given key.

Beside that, template syntax is now supported on the ‘key’ and ‘path’ setting and warnings can be ignored if ‘key’ or ‘path’ were not found.

Example:

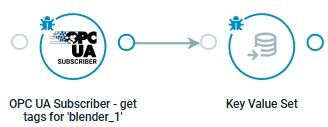

Store current state of machine in Key/Value Store from streaming ingest like OPC UA Subscription.

Key Value Set configuration:

Key = {data.machine}
Path = {data.name}
Value = data.value

Incoming message 1:

{
  "crosser": {
    "success": true
  },
  "data": {
    "machine": "blender_1",
    "name": "temp",
    "value": 17.7938298
  }
}

Incoming message 2:

{
  "crosser": {
    "success": true
  },
  "data": {
    "machine": "blender_1",
    "name": "pressure",
    "value": 0.99938298
  }
}

Incoming message 3:

{
  "crosser": {
    "success": true
  },
  "data": {
    "machine": "blender_1",
    "name": "speed",
    "value": 34.7938298
  }
}

Get all values for specific machine.

Key/Value Get configuration:

Key = {name}
Path =

Result:

{
  "crosser": {
    "success": true
  },
  "data": {
    "pressure": 0.99938298,
    "speed": 34.7938298,
    "temp": 17.7938298
  },
  "name": "blender_1",
  "path": ""
}

Get specific value utilizing ‘path’

Key = {name}
Path = {path}

Result:

{
  "crosser": {
    "success": true
  },
  "data": 17.7938298,
  "name": "blender_1",
  "path": "temp"
}

Tip: You can now also ignore module warnings in case the key and path is not found.
